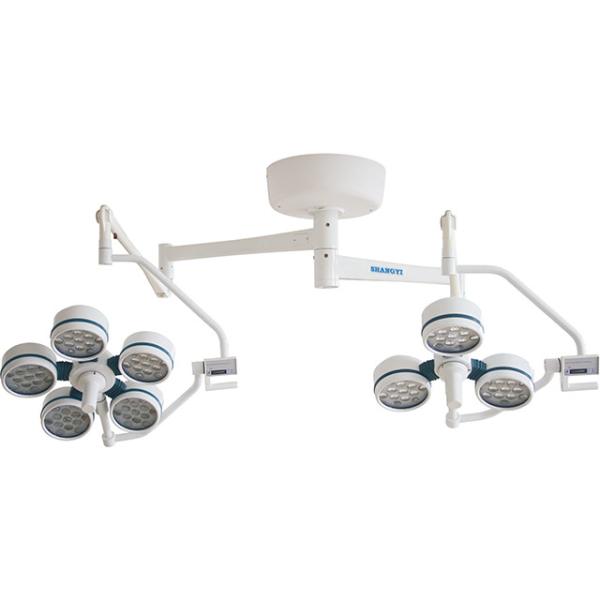

Endo 160000 Lux Led Operating Room Lights Double Dome With High Definition

Name: Endo 160000 Lux Led Operating Room Lights Double Dome With High Definition
Brand: HFMED
Price: 1 USD

China Endo 160000 Lux Led Operating Room Lights Double Dome With High Definition factory

Brand Name : HFMED

Model Number : YD02-LED3+5

Certification : CE,ISO,SGS,FDA

Place of Origin : Shanghai,China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, Western Union, T/T

Supply Ability : 500 sets/month

Delivery Time : 5~7 days after payment received

Packaging Details : carton or wooden case

Illuminance : 120,000-160,000LUX

Color temperature : 4500±200K

Color reduction index(Ra) : 95

Illuminance depth : 1100mm

Total irradiance : 480W/m²/310W/m²

Size of light field : 160～280mm

Endo Illuminance : 3000 Lux

lamp head diameter : 700mm

Service life of illuminant : 50,000h

Power supply voltage : AC110-240v,50/60Hz

Lowest height of installation : 2900mm

Total power consumption : 130W(70W+60W)

Total LED bulb quantity : 104 pcs (13*5+13*3)

Warranty : 2 years

Delivery : 6 days after payment received

Term : 100% T/T

Contact Now

FDA ISO CE Approved Double Dome ENDO 160000 lux Led Surgical Lights On Ceiling

Product Descriptions:

The Whole reflection optical system is made by CAD/CAM technology, its illumination depth is up to 1300mm ;By using color temperature compensation technology, the color reversion is uprised, and it is more suitable for the illumination of the complex surgery such as encephalon surgery and thorax surgery.

The panel is made of German PC (anti-bullet plastic) by injection moulding, makes the light softer and more reliable,Equipped with imported balance arm suspension system, which is light and handy, six group joints move together and moves smoothly, positions stablely.

Advantages:

Excellent cold light:adopting LED as light source,without temperature rising.
Excellent daylight quality and CRI meet the illumination needs of the doctors.
Excellent lighting effect:unique optical system,homogenous light spot,high-definition.
Brightness Adjustment:Micro computer digital control,with 8 shifts luminance for selection and it offers illuminance memory funcition and wide voltage working speciality.

Product Details:

Type	YD02-LED3+5 (LED) Shadowless Operating lamp
Material	Aluminum Alloy
Illuminance(Lux)33	3 LED :>120,000 Lux ;5 LED :>140,000 Lux
Colour temperature(k)	4400±500K
Colour rendering index(Ra)	95
Total irradiance (W/m2)	390/390
Size of light field (mm)	160-280
Illuminant Life	≥50000h
Power supply voltage	AC110V-240V(50HZ-60HZ)
Total power consumption(W)	140(80+60)
Total LED bulb quantity(pcs)	180pcs (186+126)
Lowest height of installation(mm)	2900mm
Endo Mode	3000LUX
Warranty	2 years

Packaging & Delivery

1 piece in a carton:	818036cm
GW/NW:	13.5kg/9kg

1 piece in a carton:	818036cm
GW:/NW:	13.5kg/9kg

1 piece in a wooden case:	1224372cm
GW:/NW:	65kg/50kg

Product Picture:

Endo 160000 Lux Led Operating Room Lights Double Dome With High Definition

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1 pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.
